metering
Smarter Energy Starts with Smart Metering
At EPSolutions, we deliver complete metering solutions, from sales to professional installation and optimisation, to help Singapore’s industrial and commercial sectors take control of their energy usage. Our systems are designed for accuracy, reliability, and long-term efficiency.
A typical setup begins with a Power Quality Meter at the main incoming supply to monitor voltage stability, harmonics, and system disturbances. Power Meters are then installed at key distribution points to track load usage, while Energy Meters are deployed at the equipment or tenant level for precise consumption monitoring. This structured approach provides a cost-effective full visibility from grid to load, reduces energy waste, and supports compliance and sustainability goals.
Speak with our specialist today!
01.
Power Quality Meter
Power Quality is used to analyze the characteristics of the incoming electricity interacting with the electrical equipment and devices that use it. There are several different components which can be individually measured for an in-depth analysis of the overall power quality including; transient voltages and currents, individual waveform capture, harmonic distortion, sag and swell monitoring, frequency variations, and power factor.

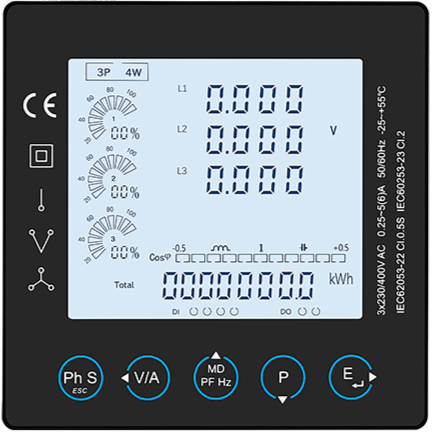

ATZ2000 – Advanced Multi-Function Power Quality Meter
The ATZ2000 offers accurate monitoring of voltage, current, power, harmonics, and more across single or three-phase grids. Supporting up to 9999 A and 500,000 V, it integrates with real-time energy monitoring systems via RS485, ensuring stable, long-term power quality analysis.
02.
Power Meter
Our digital power meters offer real-time monitoring of key electrical parameters, helping you optimise performance and reduce energy waste. Whether you need standard load tracking or in-depth harmonic analysis, we’ve got the right solution for your power management needs.

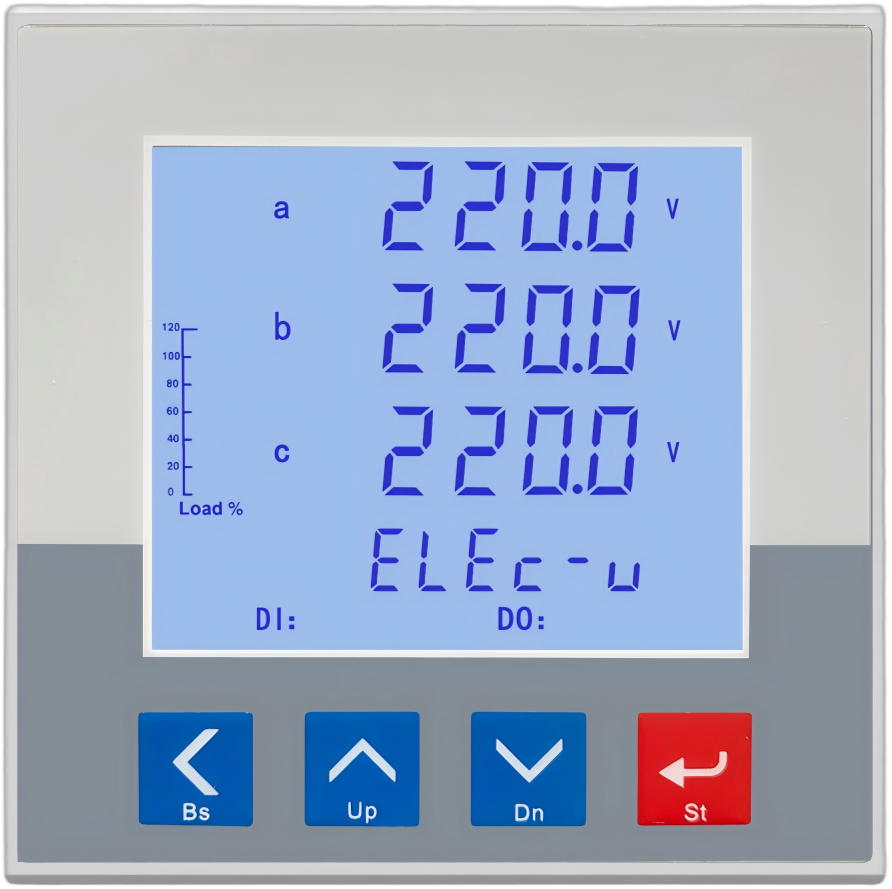

AT280Y – Digital Power Meter
A compact cost-effective meter for three-phase systems, offering accurate measurement of voltage, current, power, frequency, and energy flow. It simplifies wiring, lowers system costs, and enhances reliability—ideal for industrial power monitoring.
AT281Y – Harmonic Power Analyser
All the functions of a standard power meter, with detailed harmonic analysis up to the 63rd order. Perfect for environments with non-linear loads, it enables advanced power quality monitoring with minimal installation effort.
03.
Energy Meter
Our digital power meters offer real-time monitoring of key electrical parameters, helping you optimise performance and reduce energy waste. Whether you need standard load tracking or in-depth harmonic analysis, we’ve got the right solution for your power management needs.

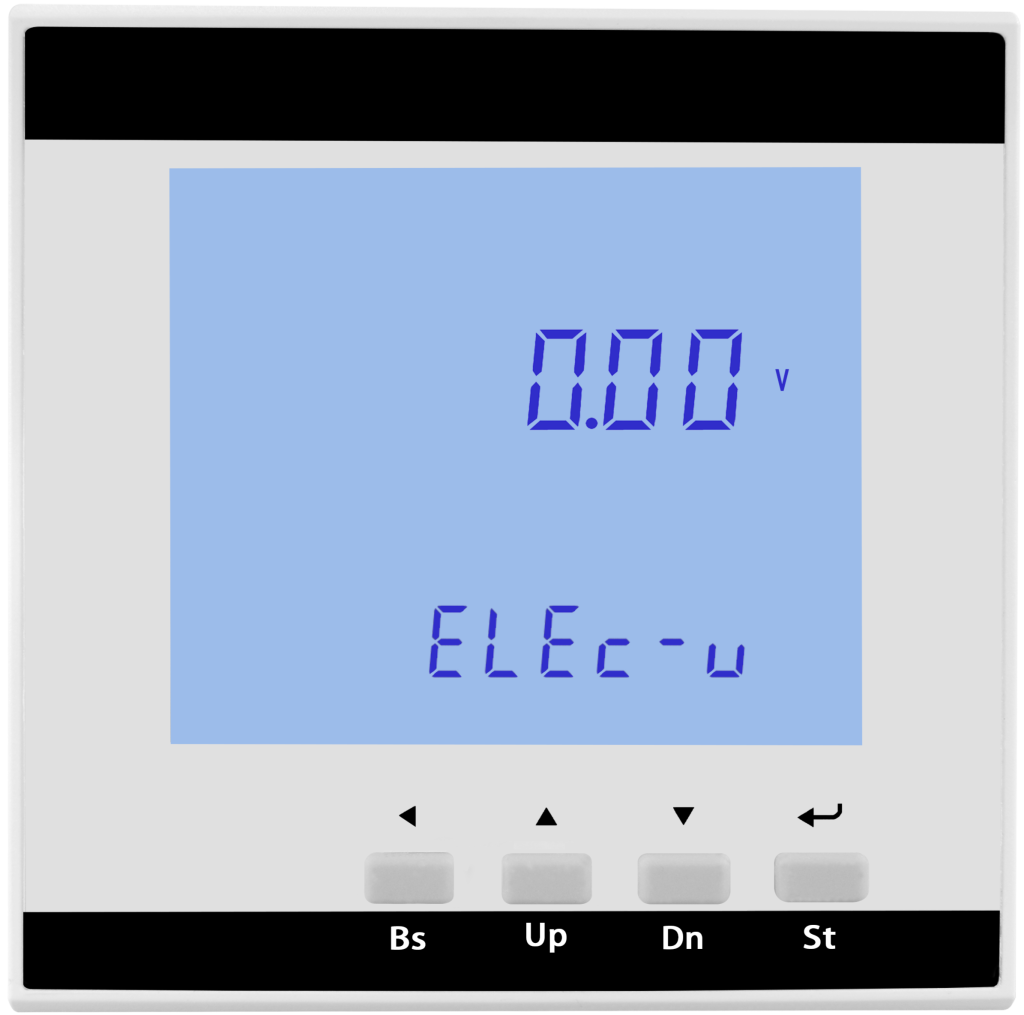

AT100Y – Single-Phase Multifunction Meter
A compact meter designed to replace multiple traditional instruments, the AT100Y simplifies wiring, reduces system cost, and improves reliability in single-phase power monitoring applications.

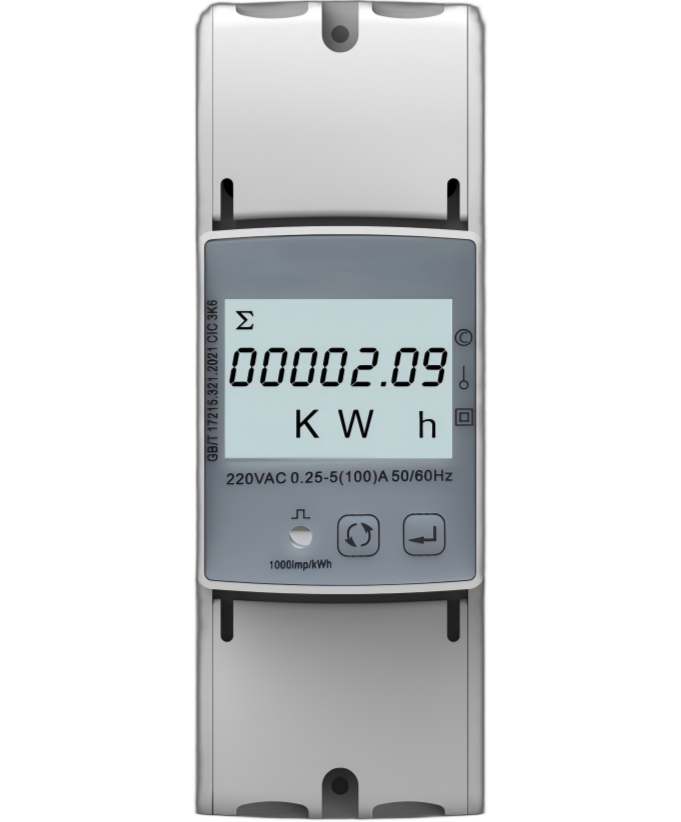

AT100G – Single-Phase Din Rail Energy Meter
Designed for comprehensive three-phase monitoring, the AT180G supports four-quadrant energy measurement, RS485 communication (up to 38400 bps), and multiple protocols including Modbus and DLT645. It features local LCD display, password protection, and is ideal for distributed energy systems and tenant-level metering.

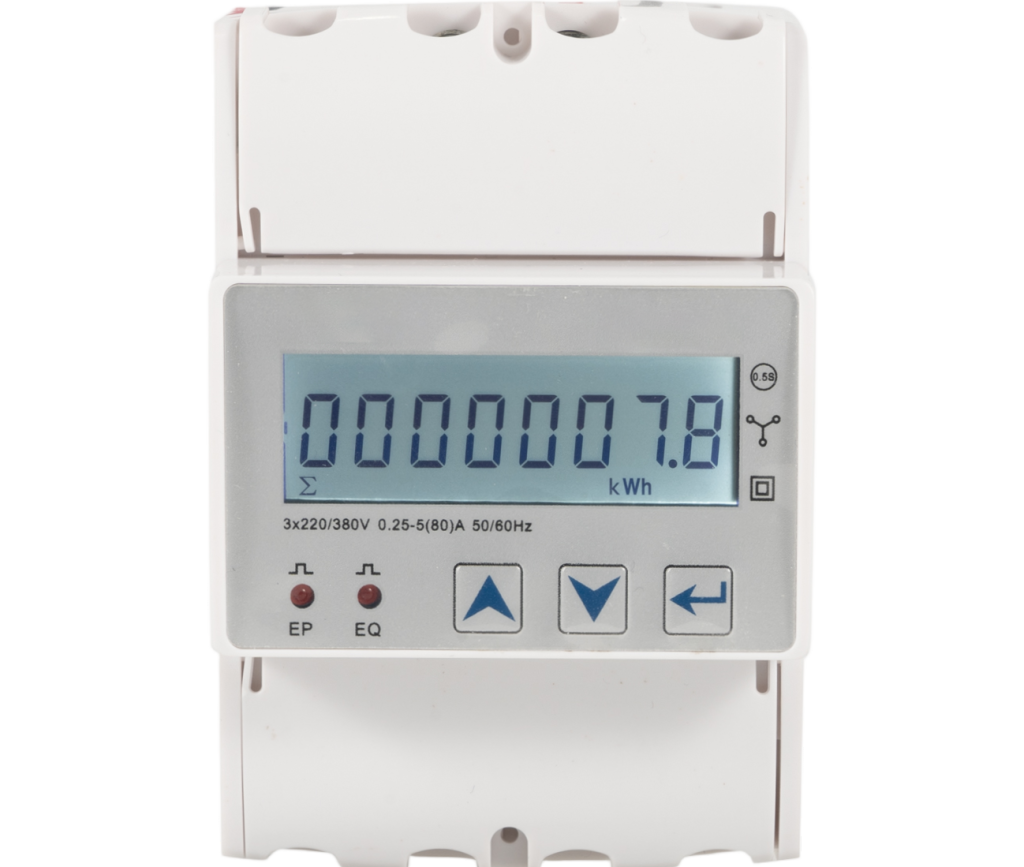

AT180G – Three-Phase Din Rail Energy Meter
Designed for comprehensive three-phase monitoring, the AT180G supports four-quadrant energy measurement, RS485 communication (up to 38400 bps), and multiple protocols including Modbus and DLT645. It features local LCD display, password protection, and is ideal for distributed energy systems and tenant-level metering.
